SITE AREA              253.7 SQM
GFA                         801.35 SQM
COMPLETION        2016
The client had purchased a pair of inter-mediate terrace houses with the intention to re-built into then into 1 unit of multi-generational dwelling and SOHO at the basement. The main challenges for the project was the site as it was located adjacent to the future N-S Expressway tunnel and the ground water level was very high. The structural and geotechnical requirements translated into a heavily engineered basement system which we carried up as architectural language and expression for the super-structure of the house. Due to the substandard length of the plots, we introduced voids adjacent to the shared parti-wall to bring in light and ventilation.

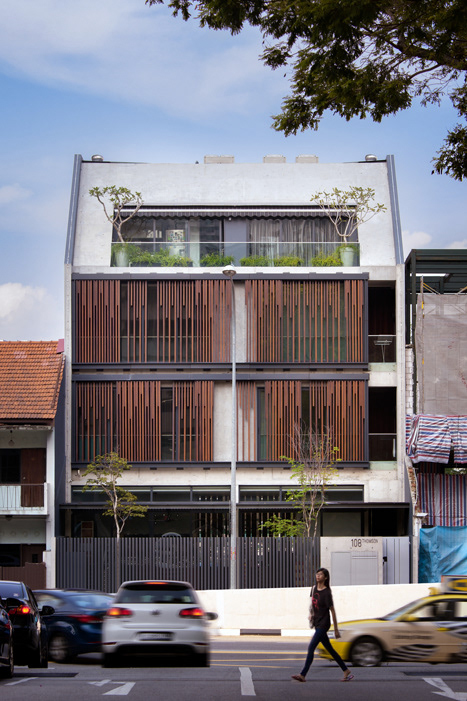

Operable sliding louvers to give the residents privacy from the busy main road

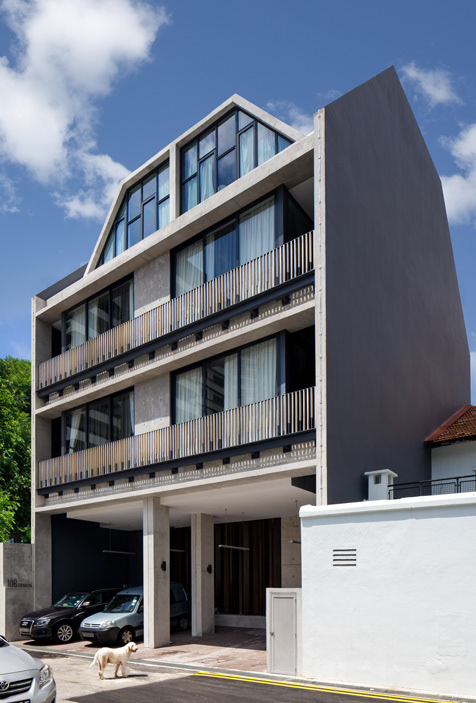

Vehicular access is from the rear service road. All concrete surfaces are kept bare.

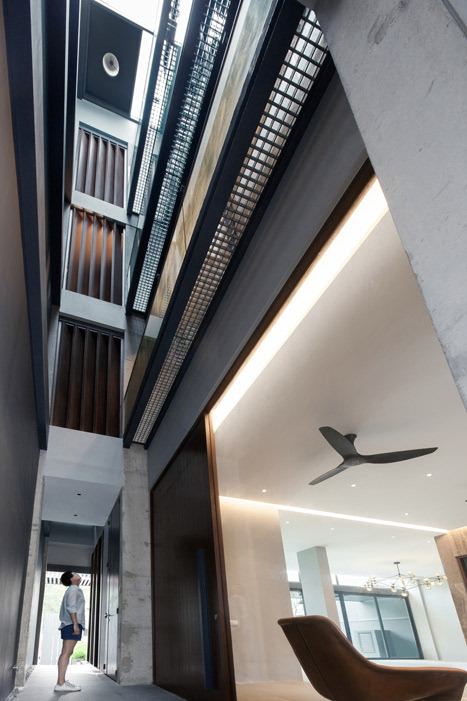

Internal voids to bring in sun-light and ventilation

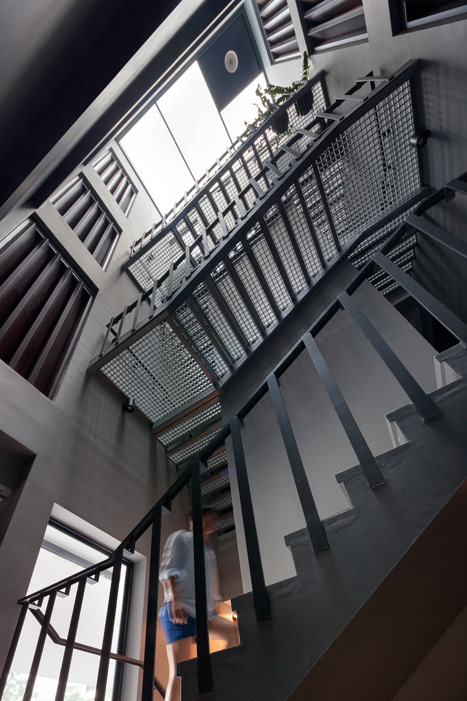

The main stairs is detailed with metal grating to allow maximum sun-light to filter through, even to the first storey

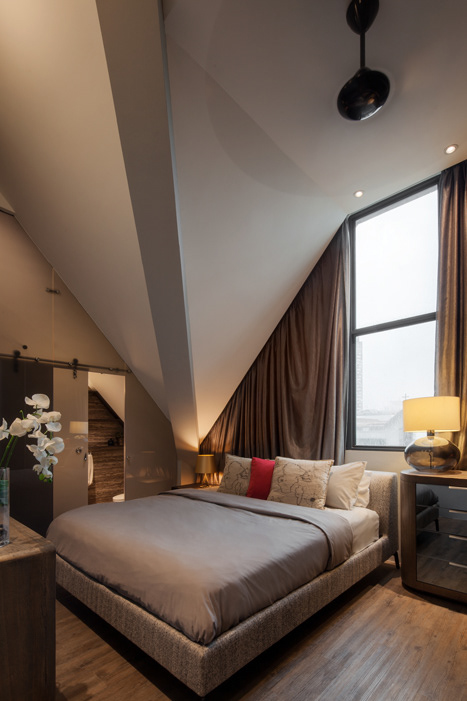

The master bedroom at the Attic Level - Interior Design by CMD Pte Ltd

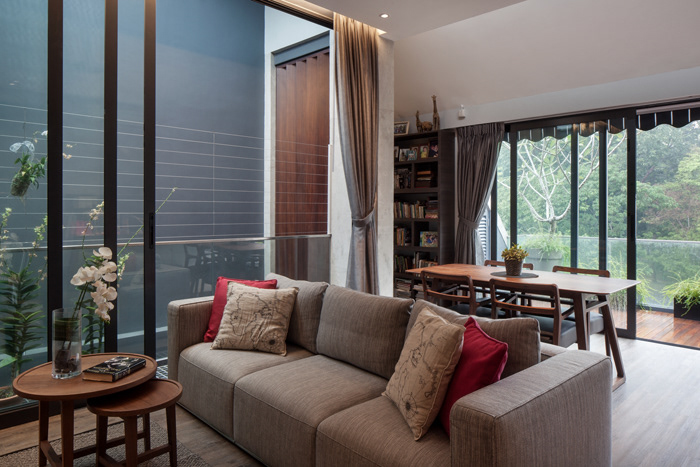

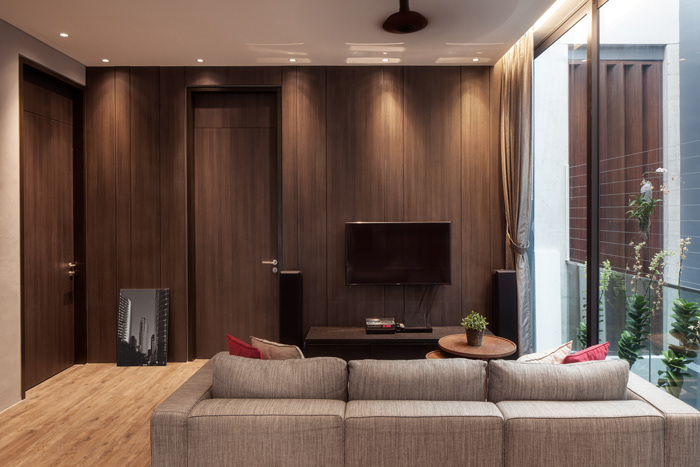

The Family Area at the Attic Level - Interior Design by CMD Pte Ltd

Strategically located voids provide sun-light and ventilation into the internal spaces - Interior Design by CMD Pte Ltd
